Products Introduction

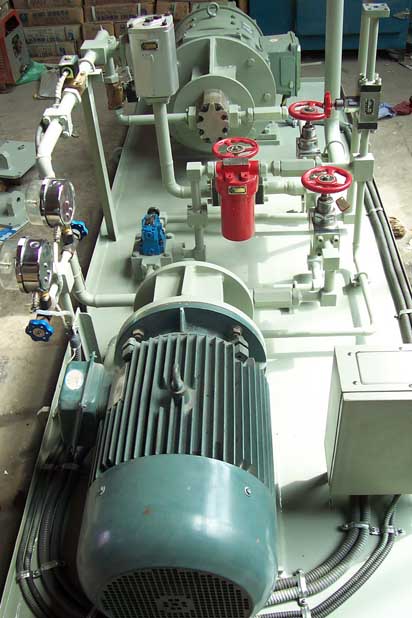

High Pressure Oil Lifter is a high pressure oil supply system consisting of motor, oil pump, one-way valve, solenoid valve, overflow valve, oil filter, stop valve, pressure gauge with electric contactors as well as other hydraulic elements and accessories. There are two circuits of oil supply, among witch one circuit is drove by 15 kWAC motor, and other circuit is drove by 13 kW DC motor. The two circuits together uses a same oil inlet, oil drain pipe of overflow valve, oil outlet. The system has two electric contactors pressure gauges of with four sub-contactors to satisfy the system pressure for sending electric signals at the high, low and over-low points.
Doanload£º
High pressure oil lifter
High pressure oil lifter
